Adjustable Step-Up Voltage Regulator U1V11A Pololu 2560

Adjustable Step-Up Voltage Regulator U1V11A  Pololu 2560

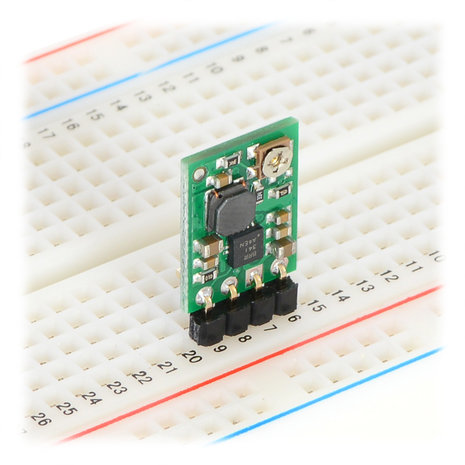

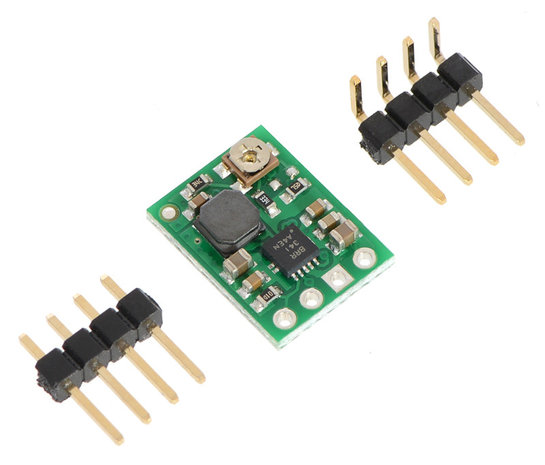

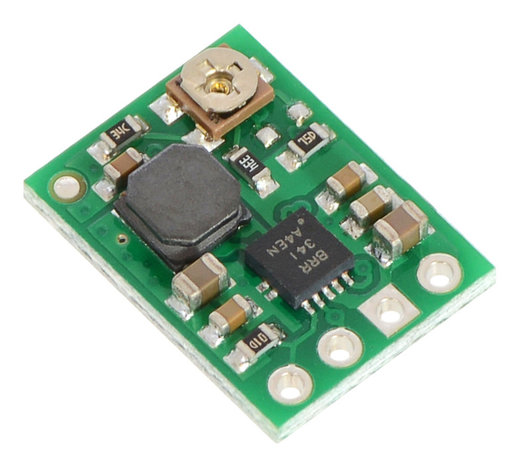

This compact (0.45″×0.6″) U1V11A switching step-up (or boost) voltage regulator efficiently boosts input voltages as low as 0.5 V to an adjustable output voltage between 2 V and 5.25 V. Unlike most boost regulators, the U1V11A offers a true shutdown option that turns off power to the load, and it automatically switches to a linear down-regulation mode when the input voltage exceeds the output. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

Specifications

• Input voltage: 0.5 V to 5.5 V

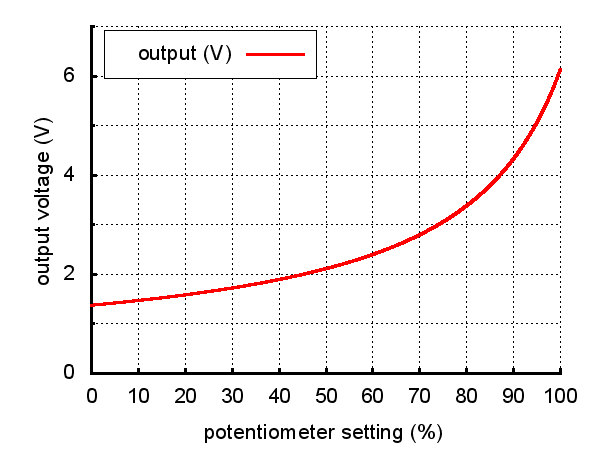

• Adjustable output voltage from 2 V to 5.25 V
• True shutdown option that turns off power to the load
• Automatic linear down-regulation when the input voltage is greater than the output voltage
• 1.2 A switch allows for input currents up to 1.2 A
• Good efficiency at light load: <1 mA typical no-load quiescent current, though it can exceed 1 mA for very low input voltages (<100 μA typical quiescent current withSHDN = LOW)
• Integrated over-temperature shutoff

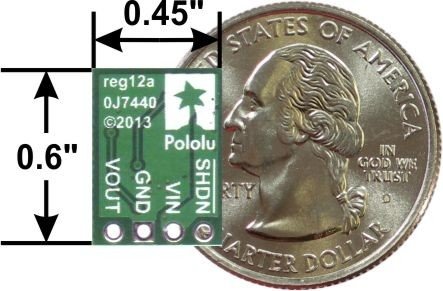

• Small size: 0.45″ × 0.6″; × 0.1″ (11.5 × 15.3 × 2.5 mm)
