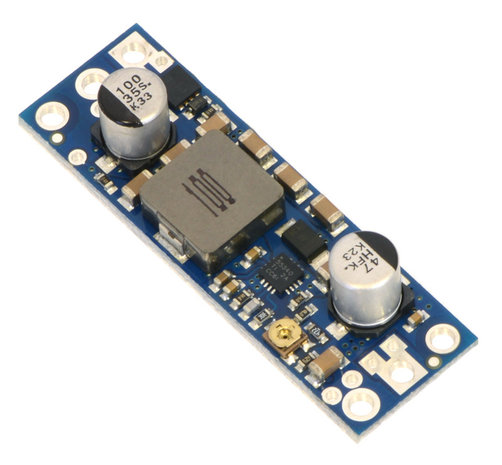

Adjustable 9-30V Step-Up Voltage Regulator U3V50AHV Pololu 2571

Adjustable 9-30V Step-Up Voltage Regulator U3V50AHV Pololu 2571

This powerful boost regulator efficiently boosts input voltages as low as 2.9 V to a higher, adjustable output voltage between 9 V and 30 V while allowing an input current as high as 5 A.



Features

• Input voltage: 2.9 V to VOUT

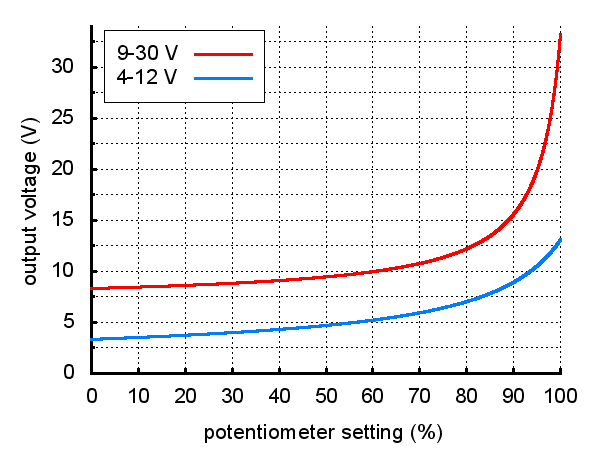

• Output adjustable from  9 V to 30 V
• 5 A switch allows for input currents up to 5 A
• Integrated reverse-voltage protection, over-current protection, over-temperature shutoff, and under-voltage lockout
• Typical efficiency of 80% to 95%, depending on input voltage, output voltage, and load

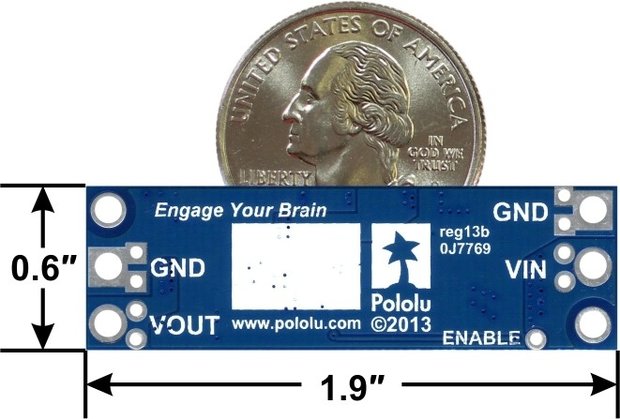

• Compact size: 1.9″ × 0.6″ × 0.41″ (48 × 15 × 10.5 mm)
• Two mounting holes for #2 or M2 screws

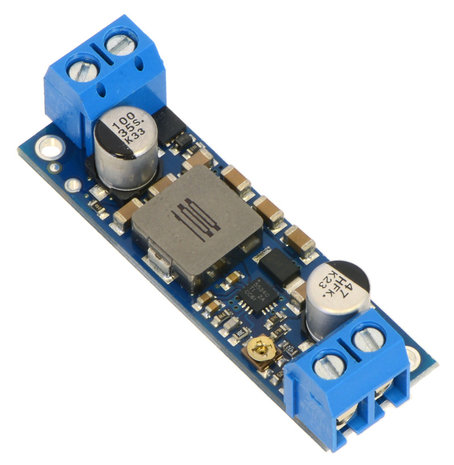

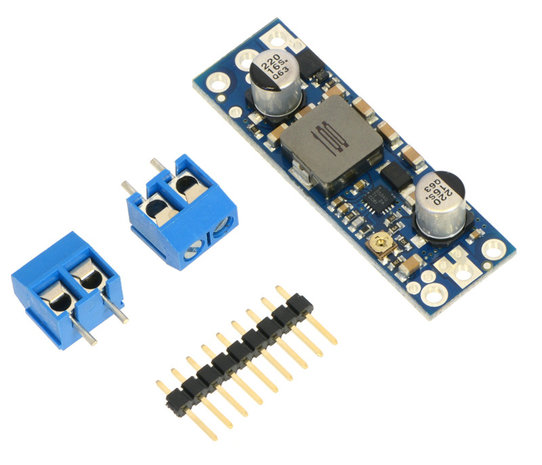

• Smaller holes for 0.1″ header pins and larger holes for terminal blocks offer several options for connecting to the board
