A-Star 32U4 Mini ULV Pololu 3102

A-Star 32U4 Mini ULV Pololu 3102

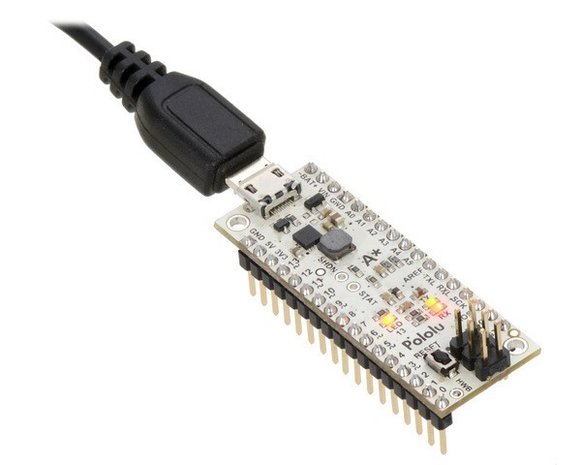

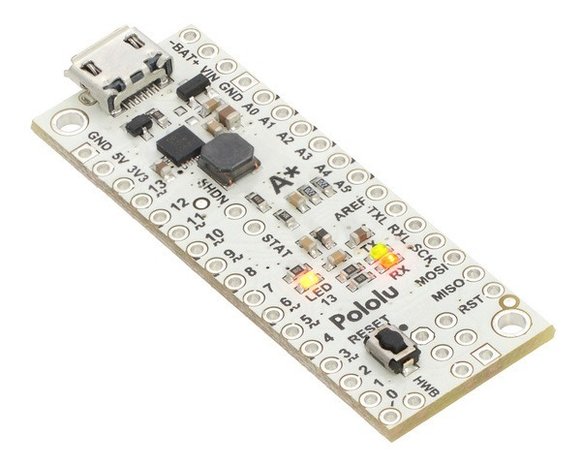

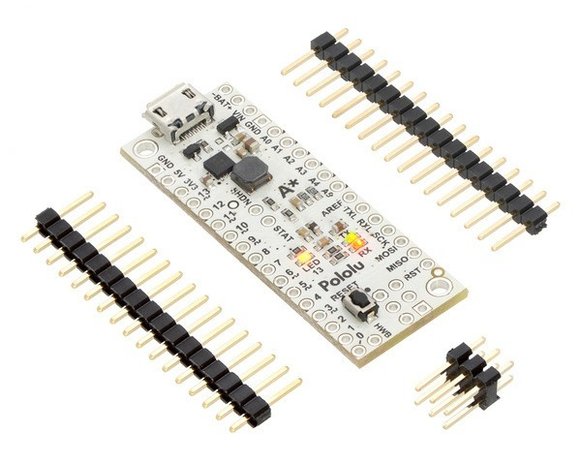

The A-Star 32U4 Mini ULV is a programmable module based on the ATmega32U4 from Atmel. Unlike competing products, it has an onboard switching step-up regulator that allows it to be powered efficiently from a 0.5 V to 5.5 V supply. This compact 1.9″ × 0.7″ board breaks out all 26 of the microcontroller’s I/O pins (of which 7 can be used as PWM outputs and 12 as analog inputs), and loading programs is made easier by a Micro-USB interface and a preloaded Arduino-compatible bootloader.



Features

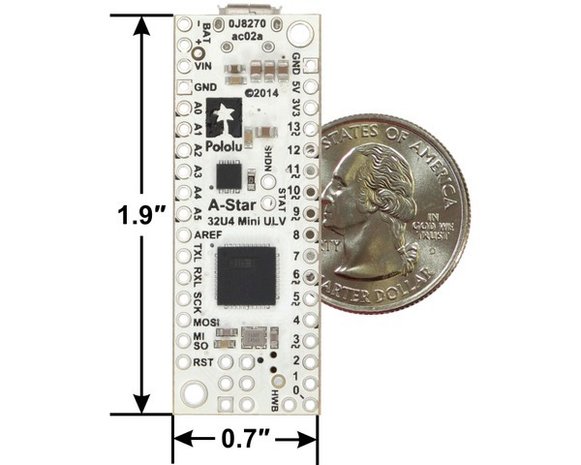

• Dimensions: 1.9″ × 0.7″ (1.95″ × 0.7″ including USB Micro-B connector)
• Programmable 16 MHz Atmel ATmega32U4 AVR microcontroller
  • 32 KB flash (4 KB used by bootloader, leaving 28 KB available for user program by default)
  • 2.5 KB SRAM
  • 1 KB EEPROM
  • Native full-speed USB (12 Mbps)
• Preloaded with Arduino-compatible bootloader (no external programmer required)

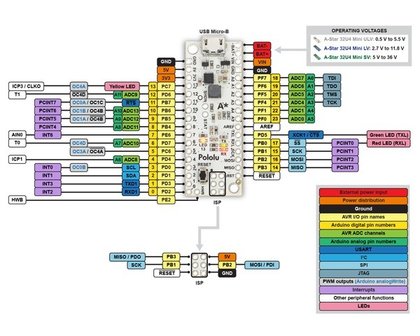

• All I/O lines from the ATmega32U4 broken out in a compact package
  • 26 general-purpose I/O pins available along the sides of the board
  • 7 pins can be configured as hardware PWM outputs
  • 12 pins can be configured as analog inputs
• 3 user-controllable LEDs
• Reset button

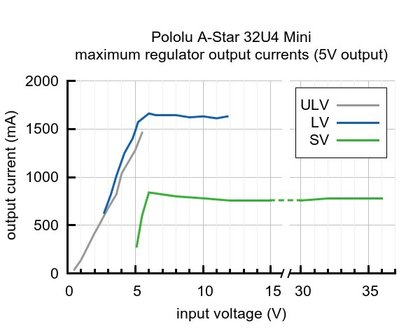

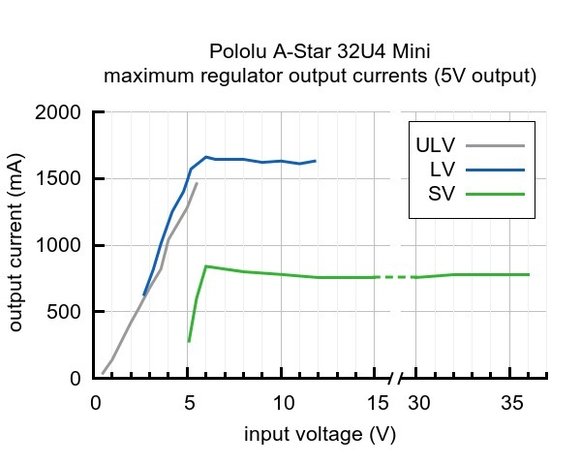

• Can be powered from USB or from an external source:
  • ULV: 0.5 V to 5.5 V
  • LV: 2.7 V to 11.8 V
  • SV: 5 V to 36 V

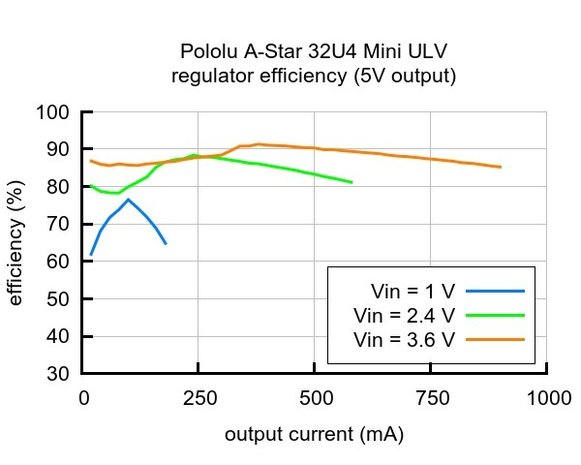

• Switching regulator enables efficient operation
• Power selection circuit allows for seamless switching between power sources and provides overcurrent protection
• Reverse-voltage protection on external power inputs
• Precision 16 MHz crystal
• 6-pin ISP header for use with an external programmer
• Comprehensive user’s guide
