5mm IR Set Zender Ontvanger

Specification:

Power: 0.15 W

Receiving Angle: 40 degrees

Voltage (VF) : 1.1-1.4 V (0.1 V each file)

Wave long (WD) : 940 nm

Receiving tube (limit parameters (Absolute Maximum Ratings) (Ta = 25 ).

Maximum power: 70 mw;

Maximum forward current: 30 ma;

Maximum reverse voltage: 5 v;

Maximum pulse current peak: 75 ma;

Welding temperature/time: 260 / acuities 5 S ;

Working environment: - 25 ~ + 70

Storage temperature: - 25 ~ + 80

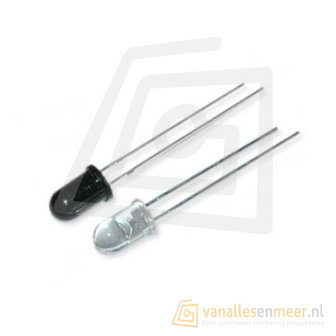

Set bestaad uit;
1x 5MM Infrared IR led
1x 5MM Receiver led
